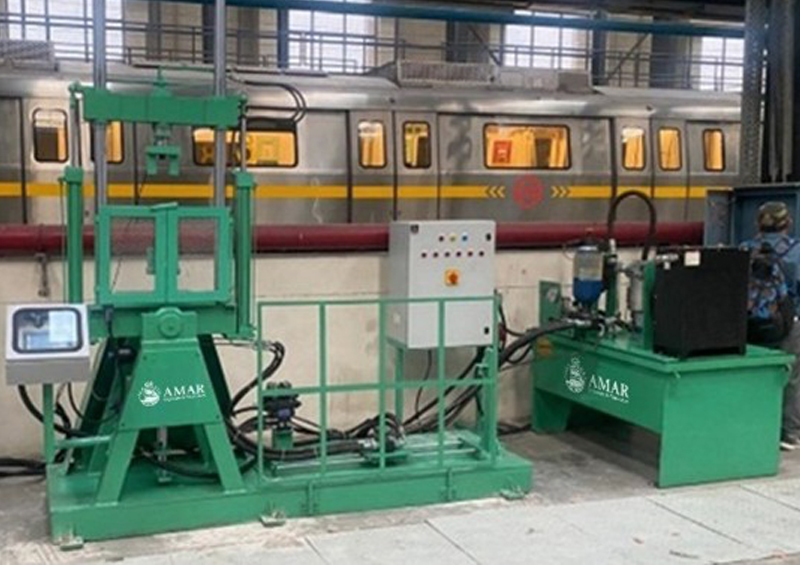

Shock Absorber/ Damper Testing MachineAmar

Damper testing machines play a critical role in ensuring the safety, performance, and longevity of railway bogies. These machines are specifically designed to measure damper force in relation to speed. They address the increased requirements for cushioning bogies due to factors such as higher speeds, reduced life cycle costs, noise, vibration, and wear.

Key Features

Purpose: Verify damper performance under real-world operating conditions.

Design: Developed exclusively for the railway industry as per specifications.

Measurement: Measures damper force as a function of speed.

Compatibility: Accommodates dampers with lengths between 200 and 1200 mm and forces up to 25 kN.

Automation: Angular position adjustment of the damper is fully automatic.

Control: Integrated PLC controls the testing process.

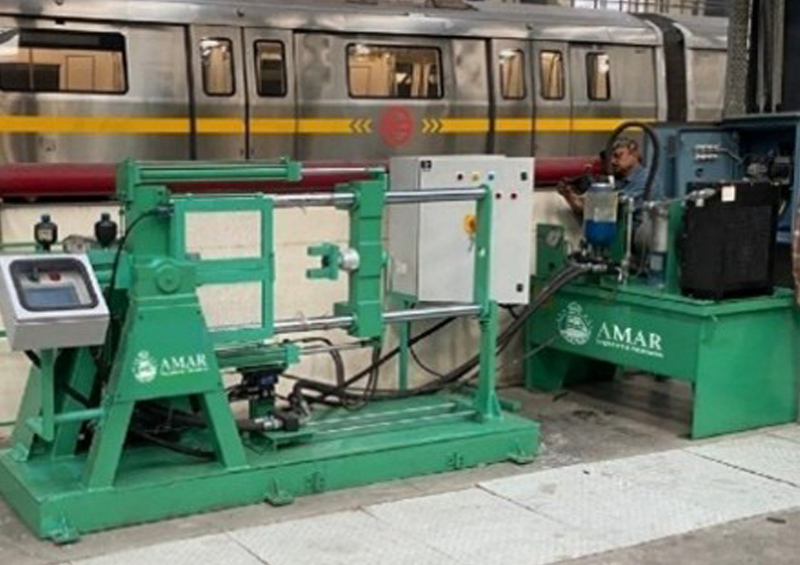

Dynamic Testing: Applies uni-axial loading at angles from 0-90 degrees to measure dynamic characteristics of railway dampers.

Tilting Shock Absorbers: Specifically tests shock absorbers used in tilting positions on railway coaches.

Technical Specifications:

Maximum damper length: 1200 mm (longer types available on request).

Maximum stroke: 200 mm.
